Состояние строительных конструкций удовлетворительное, визуально разрушений не обнаружено. В пом.012/5 между рядами Н-Л наблюдается большой наплыв бетона, при этом расстояние между полом и потолком уменьшается до 0,6-0,8м. На полу комки коричневого цвета, напоминающие глину.Приямки по ряду Т заполнены водой со слоем масла.В пом.ещении в основном сухо;на полу между рядами П-Р наплывы бетона до 0,5 м высотой, который натек из центральной части бассейна-барбатера через проходки и клапан.

В пом. 012/6 вдоль оси 46 между рядами Н-Л наблюдается большой наплыв бетона. Пол в помещении покрыт слоем воды глубиной 10см, на дне шлам.

В пом. 012/7 в районе оси 48 ближе к ряду И скопление ТСМ, которые представляют собой рыхлую массу, по внешнему виду напоминающую щебень или гравий черно-серого цвета. Пол в помещении покрыт слоем воды глубиной 10см, на дне шлам.

В пом. 012/7,8 пол покрыт слоем бетона такой толщины , что передвижение в полный рост затруднено.

The condition of the building structures is satisfactory, no visual damage was found. In room 012/5, a large influx of concrete is observed between the rows of NL, while the distance between the floor and the ceiling is reduced to 0.6-0.8 m. On the floor there are lumps of brown color, resembling clay. The pits along row T are filled with water with a layer of oil. The room is mostly dry; on the floor between the rows of P-R there are beads of concrete up to 0.5 m high, which flowed from the central part of the bubbler pools through penetrations and valve.

In the room 012/6 along the axis 46 between the rows of NL, a large influx of concrete is observed. The floor in the room is covered with a layer of water 10 cm deep, at the bottom there is sludge.

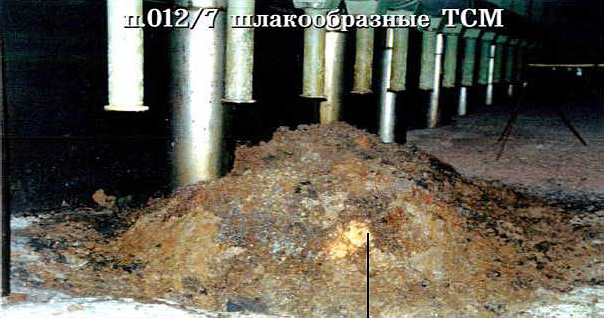

In the room 012/7 in the area of ​​axis 48 closer to the series I, the accumulation of Fuel Containing Masses, which is a loose mass, in appearance resembling crushed stone or gravel of black-gray color. The floor in the room is covered with a layer of water 10 cm deep, at the bottom there is sludge.

In the room 012 / 7.8 the floor is covered with a layer of concrete of such thickness that full-height movement is difficult.

Corium mass 'Heap' @ timestamp 6:10

'Heap' @ timestamp 1:05

Click here for photo of 'brown ceramic' corium in Room 012/7
